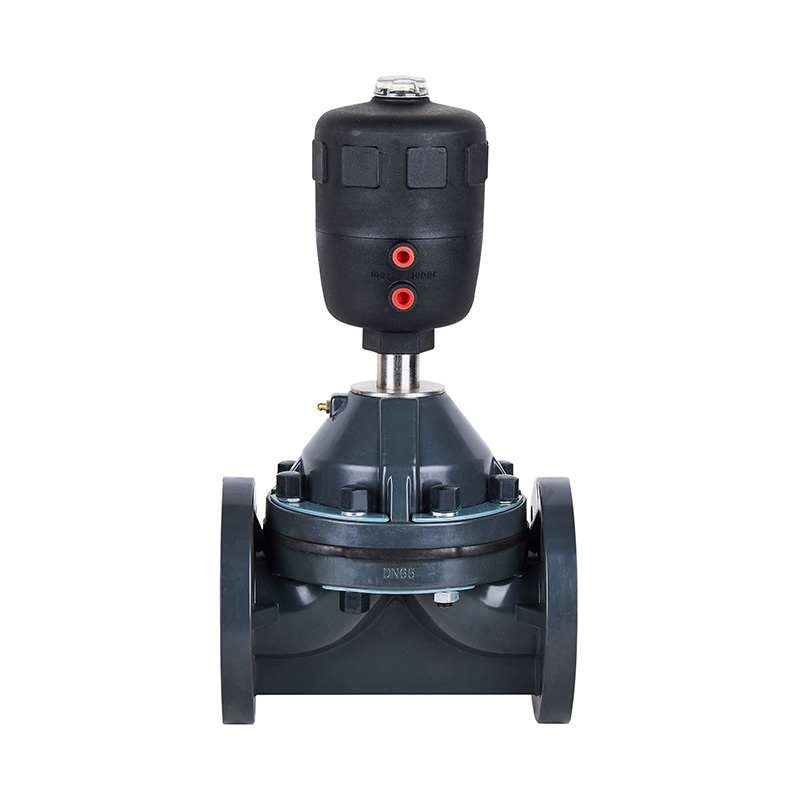

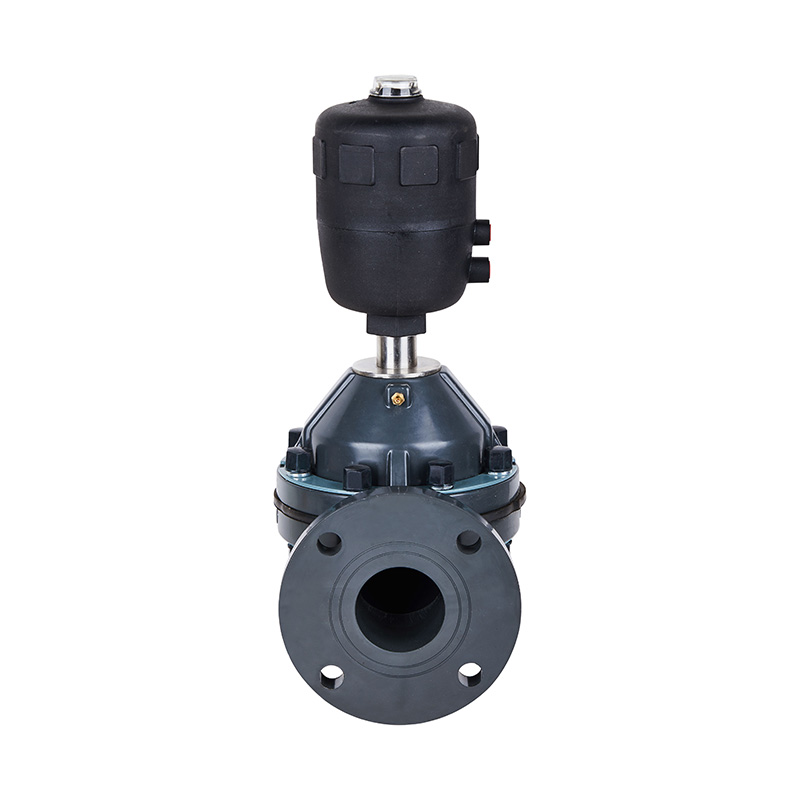

| Hauptstrukturmerkmale |
1. Die Dichtungsmembran besteht aus F46 oder PFA, die Anzahl der Falten beträgt ≥ 120000-mal, und die Korrosionsbeständigkeit entspricht F4.
2. Durch die Verwendung der Schraubenhebestruktur ist die Öffnungs- und Schließkraft enorm und die Stabilität gut.
| Liste der App-Temperaturgrenzen |
| Material | Mittlere Temperatur°C | Material | Mittlere Temperatur°C |
| CPVC | -20℃~ 95℃ | PPH | -20℃~ 110℃ |
| PVC | -0℃~ 65℃ | PVDF | -40℃~ 150℃ |
| FRPP | -14℃~ 90℃ |
| Detailzeichnung der Membranventilbaugruppe |
| Nein. | Name | Material |
| 1 | Deckungslimit | ALS |
| 2 | Zucht | Stahl, Edelstahl. |
| 3 | Haltemutter | FRPP |
| 4 | Unterlegscheibe | FRPP |
| 5 | Rad | Legierungsmaterial |
| 6 | Platte | Stahl, Edelstahl |
| 7 | Doppelkopfbolzen und Mutter | Stahl, Edelstahl |
| 8 | Motorhaube | FRPP, PVDF, PVC, CPVC, PPH |
| 9 | Jochmutter | Ht300 Stahl |
| 10 | Stengel | Stahl, Edelstahl |
| 11 | Rabatt | FRPP, PVDF, UPVC, CPVC, PPH, Stahl, Edelstahl, C.I.FRP |
| 12 | Flim | EPDM, FPM |
| 13 | Membran | F46.PFA |
| 14 | Körper | FRPP, PVDF, UPVC, CPVC, PPH |
| 15 | Platte | Stahl, Edelstahl |
| Arbeitsdruck- und Arbeitstemperaturliste |
| Kaliber/MPa/℃ | FRPP | PVDF | UPVC | CPVC | ||||||||
| 14-40 | 41-60 | 61-100 | 40-60 | 61-90 | 91-140 | 20-40 | 41-60 | 61-80 | 0-40 | 41-60 | 61-90 | |
| 15 (1/2") | 0.8 | 0.8 | 0.7 | 1 | 0.9 | 0.7 | 0.8 | 0.8 | 0.7 | 0.7 | 0.7 | 0.6 |
| 20 (3/4") | 0.8 | 0.8 | 0.7 | 1 | 0.9 | 0.7 | 0.8 | 0.8 | 0.7 | 0.7 | 0.7 | 0.6 |
| 25(1") | 0.8 | 0.8 | 0.7 | 1 | 0.9 | 0.7 | 0.8 | 0.8 | 0.7 | 0.7 | 0.7 | 0.6 |
| 32 (11/4") | 0.7 | 0.7 | 0.6 | 1 | 0.9 | 0.7 | 0.7 | 0.7 | 0.6 | 0.7 | 0.7 | 0.6 |
| 40 (11/2") | 0.7 | 0.7 | 0.6 | 0.8 | 0.7 | 0.5 | 0.7 | 0.7 | 0.6 | 0.7 | 0.7 | 0.5 |
| 50(2") | 0.7 | 0.7 | 0.6 | 0.8 | 0.6 | 0.5 | 0.7 | 0.7 | 0.6 | 0.7 | 0.7 | 0.5 |
| 65 (21/2") | 0.7 | 0.7 | 0.6 | 0.8 | 0.5 | 0.4 | 0.7 | 0.7 | 0.6 | 0.7 | 0.7 | 0.5 |
| 80(3") | 0.7 | 0.7 | 0.6 | 0.7 | 0.5 | 0.4 | 0.7 | 0.7 | 0.6 | 0.7 | 0.7 | 0.5 |
| 100(4") | 0.7 | 0.7 | 0.6 | 0.6 | 0.5 | 0.4 | 0.7 | 0.7 | 0.6 | 0.7 | 0.6 | 0.5 |
| 125(5") | 0.5 | 0.5 | 0.4 | 0.5 | 0.4 | 0.3 | 0.5 | 0.5 | 0.4 | 0.5 | 0.5 | 0.4 |
| 150(6") | 0.5 | 0.5 | 0.4 | 0.5 | 0.3 | 0.2 | 0.5 | 0.5 | 0.4 | 0.5 | 0.4 | 0.3 |
| 200(8") | 0.3 | 0.3 | 0.2 | 0.4 | 0.25 | 0.2 | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 | 0.25 |
| 250 (10") | 0.3 | 0.3 | 0.2 | 0.4 | 0.25 | 0.2 | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 | 0.2 |
| Dimensionsliste |
| DN (mm) | D1 | D | L | h | n | Φ | ||||||
| GB | JIS | ANSI | GB | JIS | ANSI | GB | JIS | ANSI | ||||
| 15 (1/2") | 95 | 65 | 70 | 2.38 | 125 | 14 | 4 | 4 | 4 | 14 | 15 | 16 |
| 20 (3/4") | 105 | 75 | 75 | 2.76 | 135 | 18 | 4 | 4 | 4 | 14 | 15 | 16 |
| 25 (1") | 115 | 85 | 90 | 3.13 | 145 | 18 | 4 | 4 | 4 | 14 | 19 | 16 |
| 32 (11/4") | 135 | 100 | 100 | 3.45 | 160 | 18 | 4 | 4 | 4 | 18 | 19 | 16 |
| 40 (11/2") | 145 | 110 | 105 | 3.88 | 180 | 20 | 4 | 4 | 4 | 18 | 19 | 16 |
| 50 (2") | 160 | 125 | 120 | 4.74 | 210 | 21 | 4 | 4 | 4 | 18 | 19 | 19 |
| 65 (21/2") | 180 | 145 | 140 | 5.49 | 250 | 22 | 4 | 4 | 4 | 18 | 19 | 19 |
| 80 (3") | 195 | 160 | 150 | 6 | 300 | 24 | 8 | 8 | 4 | 18 | 19 | 19 |
| 100 (4") | 215 | 180 | 175 | 7.5 | 350 | 26 | 8 | 8 | 8 | 18 | 19 | 19 |
| 125 (5") | 245 | 210 | 210 | 8.5 | 400 | 30 | 8 | 8 | 8 | 18 | 23 | 22 |
| 150 (6") | 280 | 240 | 240 | 9.51 | 455 | 30 | 8 | 8 | 8 | 22 | 23 | 22 |
| 200 (8") | 335 | 295 | 290 | 11.75 | 570 | 35 | 8 | 12 | 8 | 22 | 23 | 22 |
| 250 (10") | 390 | 350 | 355 | 14.25 | 680 | 38 | 12 | 12 | 12 | 22 | 25 | 25 |
| 300 (12") | 445 | 400 | 400 | 17 | 680 | 38 | 12 | 16 | 12 | 22 | 25 | 25 |
