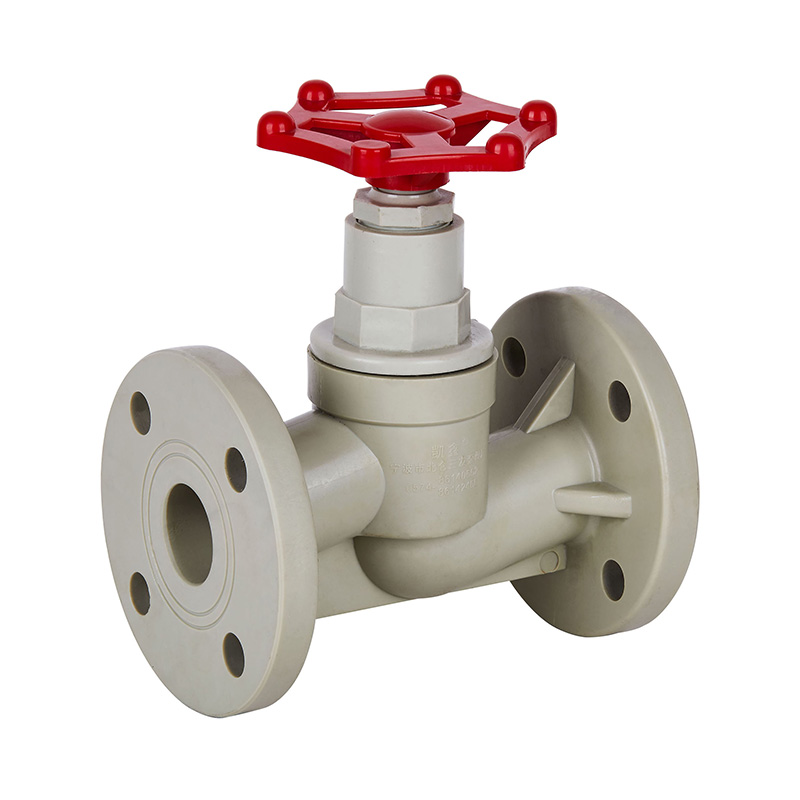

PPH J41F-10S Flange Type Globe Valve DN15-150 GB Standard

PPH Flange Ends Type Globe Valve DIN Custom Mini 2 Inch 6 Inch Industry Plastic Valve
Origin: Ningbo, Zhejiang
Brand Name: KXPV
Model Number: J41F-10S
Application: General
Material: Plastic
Temperature of Media: High Temperature, Medium Temperature
Pressure: Low Pressure
Power: Manual
Media: Acid
Port Size: DN15-DN150
Structure: Shutoff
Body material: PPH
Connection: Flange Ends
Pressure Class: 1.0Mpa(10bar)
Valve type: 1-way
Applicable medium: Acid-base
Warranty: 12 Months
Temperature: -20~110℃
Delivery Time: 7 Days
MOQ: 1 Piece

Product Structural Features

1.The plastic body has excellent corrosion resistance and abrasion resistance.
2.Compact design, high quality and inexpensive.
3. The valve is designed for precise flow regulation.

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No.

Name

Material

1

Wheel

Alloy material

2

Seal nut

FRPP,PVDF,PVC-C,PVC-U,PPH

3

Stem seal

PTFE

4

Cap nut

FRPP

5

Hexagonal nut

Steel,stainless steel

6

Filling plece

Steel,stainless steel

7

Bonnet

FRPP,PVDF,PVC-C,PVC-U,PPH

8

Double headed stud

Steel,stainless steel

9

Stem

Steel+Plastic

10

Capping

FRPP,PVDF,PVC-C,PVC-U,PPH

11

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

12

Rubber washer

EPDM,FPM

13

Hexagonal nut

Steel,stainless steel

14

Cap nut

FRPP

Flange Type Globe Valve Assembly Detail Drawing



Dimension List



DN (mm)

D1

D2

H

L

T

n-Φ

GB

JIS

ANSI

GB

JIS

ANSI

15(1/2")

105

65

70

2.38

220

154

18

4-Φ14

4-Φ15

4-Φ16

20 (3/4")

105

75

75

2.76

220

154

18

4-Φ14

4-Φ15

4-Φ16

25 (1")

115

85

90

3.13

220

160

20

4-Φ14

4-Φ19

4-Φ16

32 (11/4")

135

100

100

3.45

250

185

20

4-Φ18

4-Φ19

4-Φ16

40 (11/2")

150

110

105

3.88

275

200

20

4-Φ18

4-Φ19

4-Φ16

50 (2")

165

125

120

4.74

350

230

20

4-Φ18

4-Φ19

4-Φ19

65 (21/2")

185

145

140

5.49

390

295

24

4-Φ18

4-Φ19

4-Φ19

80 (3")

200

160

150

6

400

310

25

8-Φ18

8-Φ19

4-Φ19

100 (4")

220

180

175

7.5

410

350

26

8-Φ18

8-Φ19

8-Φ19

125 (5")

250

210

210

8.5

430

400

30

8-Φ18

8-Φ23

8-Φ22

150 (6")

285

240

240

9.51

480

480

33

8-Φ23

8-Φ23

8-Φ22
