| Liste der App-Temperaturgrenzen |
| Material | Mittlere Temperatur℃ | Material | Mittlere Temperatur℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~ 95℃ | PVC-U | -5℃~ 45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~ 120℃ | PPH | -20℃~ 110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~ 150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Produktstrukturmerkmale |
1. Geringes Gewicht: PVC-U wiegt nur 1/10 des Gewichts von Gusseisen, was den Transport und die Installation erleichtert und die Kosten senkt.
2. Hervorragende chemische Beständigkeit: PVC-U weist eine ausgezeichnete Beständigkeit gegenüber Säuren und Laugen auf, mit Ausnahme stärkerer Säuren und Laugen nahe ihrem Sättigungspunkt.
3. Langlebig: PVC-U bietet eine hervorragende Witterungsbeständigkeit und ist resistent gegen Korrosion durch Bakterien und Pilze.
4. Nicht leitend: PVC-U ist nicht leitend und nicht anfällig für Korrosion durch Elektrolyse oder elektrischen Strom, sodass keine Nachbearbeitung erforderlich ist. Es ist nicht brennbar und unterstützt keine Verbrennung, sodass keine Bedenken hinsichtlich des Brandschutzes bestehen.
5. Geringer Widerstand und hohe Durchflussrate: Die glatte Innenwand minimiert Flüssigkeitsverluste und Schmutz haftet weniger an der glatten Rohroberfläche, was die Wartung einfach und kostengünstig macht.
6. Einfache Installation und geringe Kosten: Schneiden und Verbinden sind einfach. PVC-Kleber hat sich als sicher, zuverlässig, einfach zu verwenden und kostengünstig erwiesen.

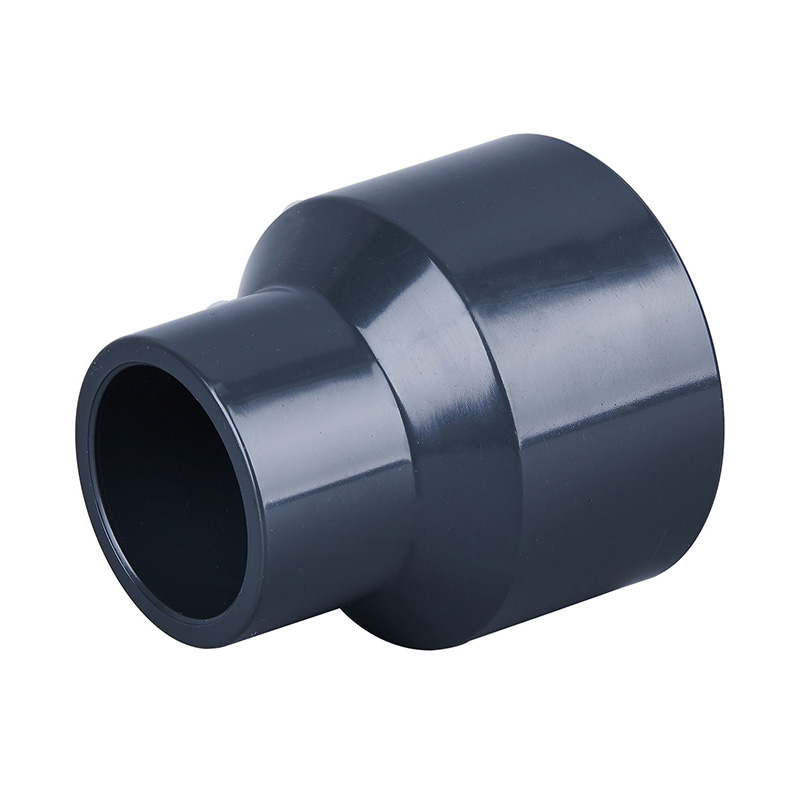

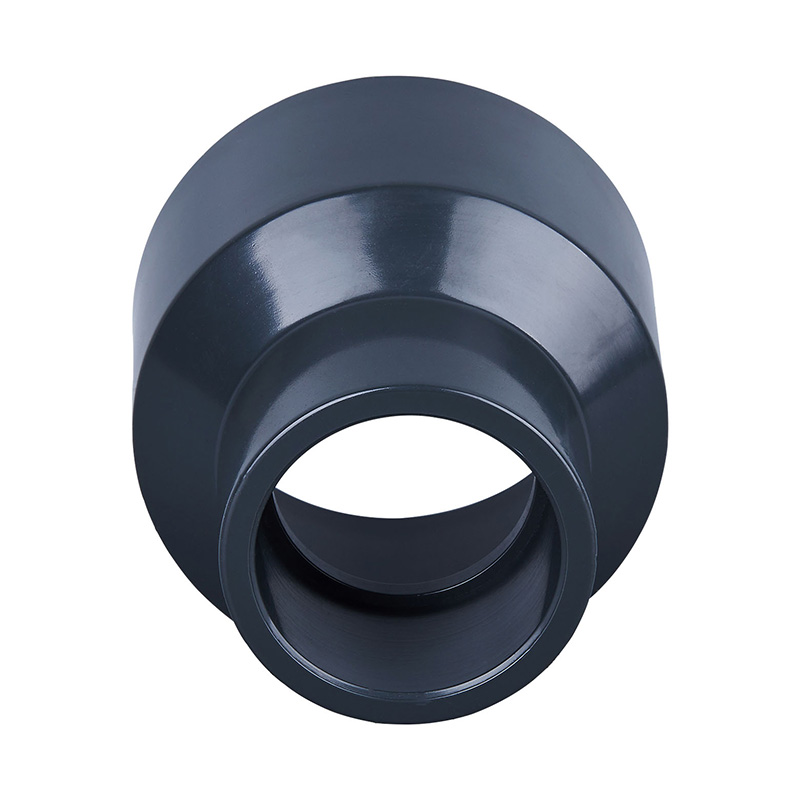

| PVC-U-Reduzierstück |

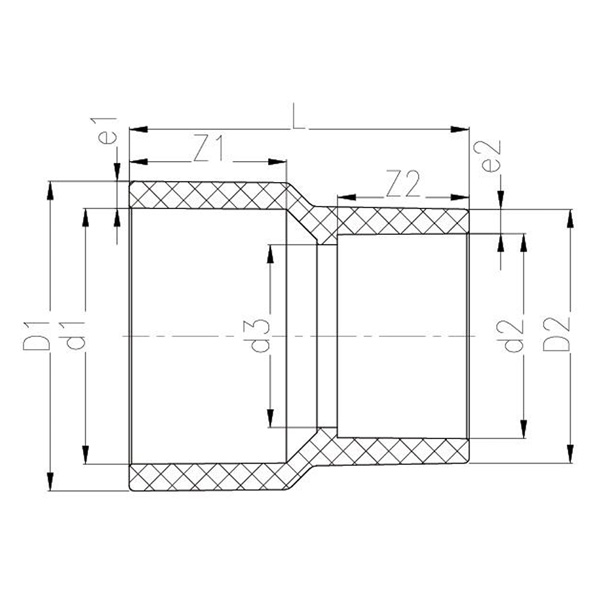

| DN | D1 | D2 | d1 | d2 | d3 | L | Z1 | Z2 | e1 | e2 | ||||||||||||||||||
| 300*150 | 351 | 180 | 315 | 160 | 154 | 311.5 | 163.5 | 86 | 18 | 10 | ||||||||||||||||||
| 300*200 | 351 | 251 | 315 | 225 | 219 | 325 | 163.5 | 118.5 | 18 | 13 | ||||||||||||||||||
| 300*250 | 351 | 310 | 315 | 280 | 274 | 336.5 | 163.5 | 146 | 18 | 15 | ||||||||||||||||||
| 350*150 | 390 | 184 | 355 | 160 | 154 | 343 | 184 | 86 | 17.5 | 12 | ||||||||||||||||||
| 350*200 | 390 | 249 | 355 | 225 | 214 | 359 | 184 | 119 | 17.5 | 12 | ||||||||||||||||||
| 350*250 | 390 | 308 | 355 | 280 | 270 | 370 | 184 | 146 | 17.5 | 14 | ||||||||||||||||||
| 350*300 | 390 | 346 | 355 | 315 | 304 | 378 | 184 | 164 | 175 | 15.5 | ||||||||||||||||||
| 400*200 | 440 | 249 | 400 | 225 | 214 | 394 | 206 | 119 | 20 | 12 | ||||||||||||||||||
| 400*250 | 440 | 308 | 400 | 280 | 270 | 405 | 206 | 146 | 20 | 14 | ||||||||||||||||||
| 400*300 | 440 | 346 | 400 | 315 | 304 | 413 | 206 | 164 | 20 | 15.5 | ||||||||||||||||||
| 400*350 | 440 | 390 | 400 | 355 | 340 | 423 | 206 | 184 | 20 | 17.5 | ||||||||||||||||||
| 450*300 | 494 | 346 | 450 | 315 | 304 | 454 | 231 | 164 | 22 | 15.5 | ||||||||||||||||||
| 450*350 | 494 | 390 | 450 | 355 | 340 | 463 | 231 | 184 | 22 | 17.5 | ||||||||||||||||||
| 450*400 | 494 | 440 | 450 | 400 | 386 | 472 | 231 | 206 | 22 | 20 | ||||||||||||||||||
| 500*300 | 548 | 346 | 500 | 315 | 304 | 494 | 256 | 164 | 24 | 15.5 | ||||||||||||||||||
| 500*350 | 548 | 390 | 500 | 355 | 340 | 504 | 256 | 184 | 24 | 17.5 | ||||||||||||||||||
| 500*400 | 548 | 440 | 500 | 400 | 386 | 513 | 256 | 206 | 24 | 20 | ||||||||||||||||||
| 500*450 | 548 | 494 | 500 | 450 | 430 | 525 | 256 | 231 | 24 | 22 | ||||||||||||||||||
| 600*300 | 692 | 346 | 630 | 315 | 304 | 600 | 321 | 164 | 31 | 15.5 | ||||||||||||||||||
| 600*350 | 692 | 390 | 630 | 355 | 340 | 609 | 321 | 184 | 31 | 17.5 | ||||||||||||||||||
| 600*400 | 692 | 440 | 630 | 400 | 386 | 618 | 321 | 206 | 31 | 20 | ||||||||||||||||||
| 600*450 | 692 | 494 | 630 | 450 | 430 | 630 | 321 | 231 | 31 | 22 | ||||||||||||||||||
| 600*500 | 692 | 548 | 630 | 500 | 480 | 641 | 321 | 256 | 31 | 24 | ||||||||||||||||||
| DN | D1 | D2 | d1 | d2 | d3 | L | Z1 | Z2 | e1 | e2 | ||||||||||||||||||||||
| 20*15 | 32 | 27 | 25 | 20 | 16 | 42 | 19 | 16 | 3.5 | 3.5 | ||||||||||||||||||||||
| 25*15 | 40 | 27 | 32 | 20 | 16 | 48.5 | 22 | 16 | 4 | 3.5 | ||||||||||||||||||||||
| 25*20 | 40 | 32 | 32 | 25 | 21 | 49 | 22 | 19 | 4 | 3.5 | ||||||||||||||||||||||
| 32*20 | 50 | 32 | 40 | 25 | 21 | 57 | 26 | 19 | 5 | 3.5 | ||||||||||||||||||||||
| 32*25 | 50 | 40 | 40 | 32 | 28 | 57 | 26 | 22 | 5 | 4 | ||||||||||||||||||||||
| 40*25 | 61 | 40 | 50 | 32 | 28 | 67 | 31 | 22 | 5.5 | 4 | ||||||||||||||||||||||
| 40*32 | 61 | 50 | 50 | 40 | 36 | 67 | 31 | 26 | 5.5 | 5 | ||||||||||||||||||||||
| 50*25 | 75 | 40 | 63 | 32 | 28 | 80.5 | 38 | 22 | 6 | 4 | ||||||||||||||||||||||
| 50*32 | 75 | 50 | 63 | 40 | 36 | 80.5 | 38 | 26 | 6 | 5 | ||||||||||||||||||||||
| 50*40 | 75 | 61 | 63 | 50 | 45 | 81 | 38 | 31 | 6 | 5.5 | ||||||||||||||||||||||
| 65*25 | 88 | 40 | 75 | 32 | 28 | 93.5 | 44 | 22 | 6.5 | 4 | ||||||||||||||||||||||
| 65*32 | 88 | 50 | 75 | 40 | 36 | 93.5 | 44 | 26 | 6.5 | 5 | ||||||||||||||||||||||
| 65*40 | 88 | 61 | 75 | 50 | 45 | 94 | 44 | 31 | 6.5 | 5.5 | ||||||||||||||||||||||
| 65*50 | 88 | 75 | 75 | 63 | 58 | 95 | 44 | 38 | 6.5 | 6 | ||||||||||||||||||||||
| 80*25 | 105 | 40 | 90 | 32 | 28 | 108 | 51 | 22 | 7.5 | 4 | ||||||||||||||||||||||
| 80*32 | 105 | 50 | 90 | 40 | 36 | 108 | 51 | 26 | 7.5 | 5 | ||||||||||||||||||||||
| 80*40 | 105 | 61 | 90 | 50 | 45 | 108.5 | 51 | 31 | 7.5 | 5.5 | ||||||||||||||||||||||
| 80*50 | 105 | 75 | 90 | 63 | 58 | 109.5 | 51 | 38 | 7.5 | 6 | ||||||||||||||||||||||
| 80*65 | 105 | 88 | 90 | 75 | 69 | 110.5 | 51 | 44 | 7.5 | 6.5 | ||||||||||||||||||||||
| 100*40 | 127 | 61 | 110 | 50 | 45 | 130 | 61 | 31 | 8.5 | 5.5 | ||||||||||||||||||||||
| 100*50 | 127 | 75 | 110 | 63 | 58 | 130 | 61 | 38 | 8.5 | 6 | ||||||||||||||||||||||
| 100*65 | 127 | 88 | 110 | 75 | 69 | 130 | 61 | 44 | 8.5 | 6.5 | ||||||||||||||||||||||
| 100*80 | 127 | 105 | 110 | 90 | 84 | 130 | 61 | 51 | 8.5 | 7.5 | ||||||||||||||||||||||
| 125*50 | 161 | 75 | 140 | 63 | 58 | 143 | 76 | 38 | 10.5 | 6 | ||||||||||||||||||||||
| 125*65 | 161 | 88 | 140 | 75 | 69 | 146 | 76 | 44 | 10.5 | 6.5 | ||||||||||||||||||||||
| 125*80 | 161 | 105 | 140 | 90 | 82 | 149 | 76 | 51 | 10.5 | 7.5 | ||||||||||||||||||||||
| 125*100 | 161 | 127 | 140 | 110 | 102 | 154 | 76 | 61 | 10.5 | 8.5 | ||||||||||||||||||||||
| 150*65 | 184 | 88 | 160 | 75 | 69 | 162 | 86 | 44 | 12 | 6.5 | ||||||||||||||||||||||
| 150*80 | 184 | 105 | 160 | 90 | 82 | 165 | 86 | 51 | 12 | 7.5 | ||||||||||||||||||||||
| 150*100 | 184 | 127 | 160 | 110 | 102 | 170 | 86 | 61 | 12 | 8.5 | ||||||||||||||||||||||
| 150*125 | 184 | 161 | 160 | 140 | 130 | 176 | 86 | 76 | 12 | 10.5 | ||||||||||||||||||||||
| 200*80 | 260 | 105 | 225 | 90 | 82 | 217 | 119 | 51 | 17.5 | 7.5 | ||||||||||||||||||||||
| 200*100 | 260 | 127 | 225 | 110 | 102 | 221 | 119 | 61 | 17.5 | 8.5 | ||||||||||||||||||||||
| 200*125 | 260 | 161 | 225 | 140 | 130 | 228 | 119 | 76 | 17.5 | 10.5 | ||||||||||||||||||||||
| 200*150 | 260 | 184 | 225 | 160 | 150 | 233 | 119 | 86 | 17.5 | 12 | ||||||||||||||||||||||
| 250*200 (φ250*225) | 288 | 260 | 250 | 225 | 218 | 265 | 131 | 119 | 19 | 17.5 | ||||||||||||||||||||||
| 250*100 (φ280*110) | 310 | 127 | 280 | 110 | 105 | 272.5 | 146 | 61 | 15 | 8.5 | ||||||||||||||||||||||
| 250*125 (φ280*140) | 310 | 160 | 280 | 140 | 135 | 278 | 146 | 76 | 15 | 10 | ||||||||||||||||||||||
| 250*150 (φ280*160) | 310 | 180 | 280 | 160 | 155 | 283 | 146 | 86 | 15 | 12 | ||||||||||||||||||||||
| 250*200 (φ280*225) | 310 | 251 | 280 | 225 | 220 | 297 | 146 | 118.5 | 15 | 13 | ||||||||||||||||||||||
| 300*100 | 351 | 127 | 315 | 110 | 105 | 300.5 | 163.5 | 61 | 18 | 8.5 | ||||||||||||||||||||||
| 300*125 | 351 | 160 | 315 | 140 | 135 | 307 | 163.5 | 76 | 18 | 10 | ||||||||||||||||||||||
